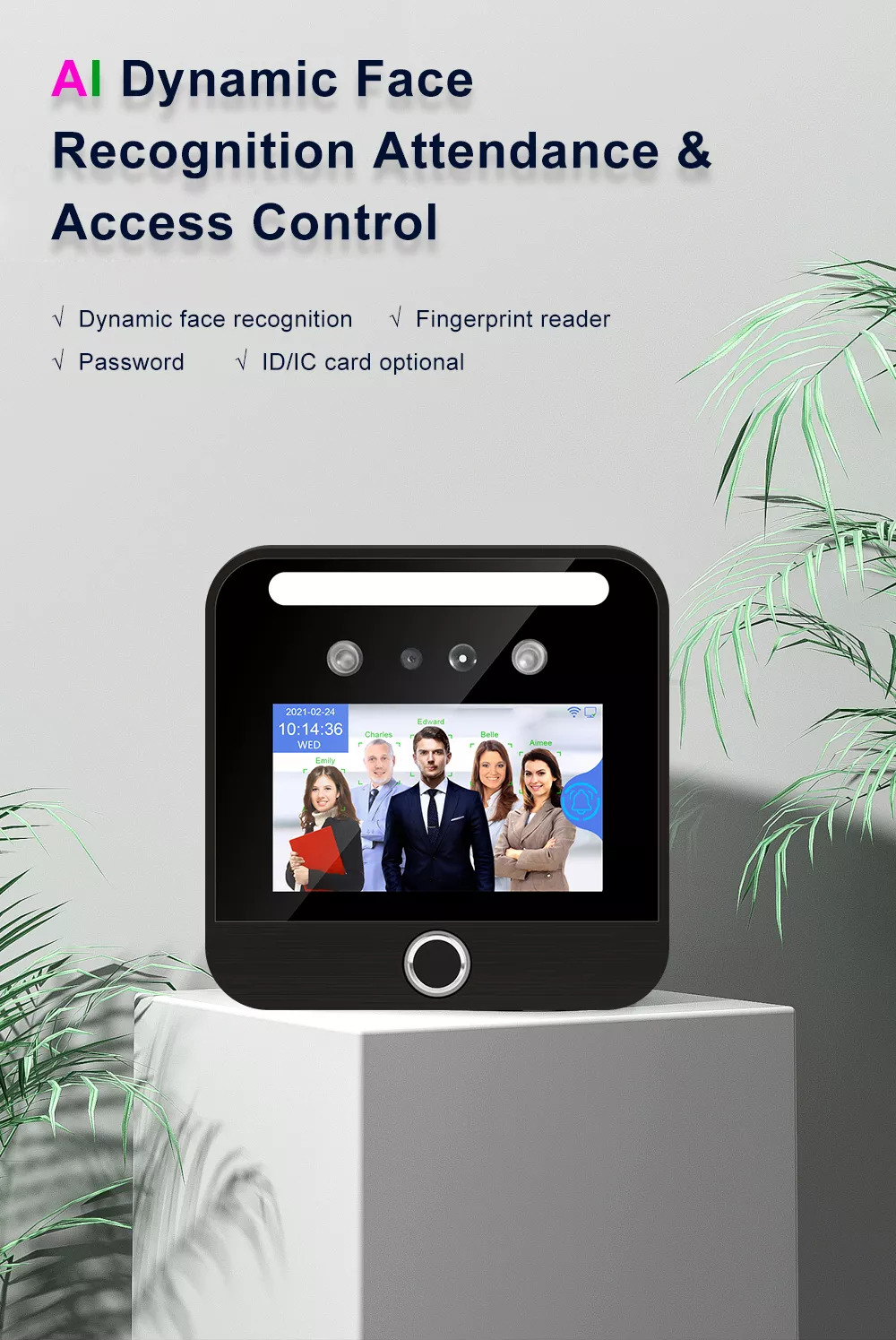

Mini 5 Inch Face Recognition Module Thermal Linux For Recording And Access

Name: Mini 5 Inch Face Recognition Module Thermal Linux For Recording And Access
Brand: Turboo
Price: 1 USD

Mini 5 Inch Face Recognition Module Thermal Linux For Recording And Access Manufactures

Brand Name : Turboo

Model Number : EU-AI03F

Certification : CE,Rosh

Place of Origin : Guangdong, China

MOQ : 1 PCS

Price : negotation

Payment Terms : L/C, , T/T

Supply Ability : 5000 units/ month

Delivery Time : 5~10 days

Packaging Details : carton

Display : 5 inch Touch Screen

Communication : TCP/IP,RS232/485,USB,WIFI

RAM : 256M DDR3

ROM : eMMC Flash 4GB

Recognition Distance : 0.5~2.5 meters

Face Recognition Accuracy : 99.70%

Contact Now

Mini Face Recognition Module Thermal Facial Recognition Tablet Linux For Recording And Access

Product Description

Principle of Identification: Face algorithm technology of multi-task cascaded convolutional neural network based on video stream for dynamic face detection,
tracking and recognition.

Face Capacity: 5,000

Card Capacity: 15,000

PIN Capacity: 15,000

Fingerprint: 15,000

Specification

System
Opearating System	LINUX 3.10
RAM	256M DDR3L
ROM	4GB EMMC
SDK	Support
Mask-wearing Verification	Support
Free Software	Support for PC and Cloud based
Basic
Display	5 Inch TFT Screen
Screen Type	Capacitive touch screen
Screen Resolution	HD 720*1280
Binocular Camera	Real Sensor 1/2.9 inch fov 75^., 200W pixel high-definition color camera WDR wide dynamic
Light Compensation	Dark environment : LED soft light automatic lights up
WDR	Wide Dynamic Range
Voice Prompt	Support
Stranger Model	Support
Function
Time Attendance Record	Support
Access Control	Support
Performance
Face Recognition Distance	0.5 -2.5 meters
Face Verification Accuracy	99.98%
Face Recognition Time	0.02S (Support at most 5 users recognition at the same time)
Capacity
Facial Capacity	5,000 (20000 optional)
Card Capacity	15,000 (50000 optional)
Password Capacity	15,000 (50000 optional)
Fingerprint Capacity	15,000 (50000 optional)
Alarm
Anti-Passback	Support
Duress	Support
Door Sensor	Support
Instrusion	Support
Illegal Card Exceeding Threshold	Support
Port
Wiegand	2
USB	USB 2.0 x1
Alarm	1
Exit Button	1
Door Sensor	1
Lock	1
Unclock when power off	1
General Information
Power Dupply	12V DC
Working Temperature	-15℃~+45℃
Working Humidity	20%~90%
Device Dimension	18511020mm
Accessory	Wall mount bracket (provided)
Certification	CE, Rohs
Installation Method	Wall mount, desktop stand;optional: floor stand

Mini 5 Inch Face Recognition Module Thermal Linux For Recording And Access

Two Way Installation

Wall Mount Installation and Desktop Installation

Mini 5 Inch Face Recognition Module Thermal Linux For Recording And Access

Schematic Diagram of Access Control Wiring

1) Schematic Diagram of device wiring port

Mini 5 Inch Face Recognition Module Thermal Linux For Recording And Access

2) Device connection diagram

Mini 5 Inch Face Recognition Module Thermal Linux For Recording And Access

Our Advantage

1. Simultaneously Recognizing 5 Users
2. 3 Recognition Distance Mode: Long(2.5m)/Middle(1.5m)/Short(0.5m)

3. 5000 Face Capacity
4. 0.2s Recognition Speed
5. 200W WDR, Able To Work In Dark, Back Light And Strong Light
6. 5 Inch HD Touch Screen with Operation System
7. Stranger Mode: Capturing And Recording Strangers
8. Customized Logo And Screen Saver
9. Waterproof and Dustproof

10. Double Verification: Card+Face

FAQ

Q: 1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q: 2. What is the lead time?

A: Sample needs 1-3 days, mass production time needs 10-25 days for order less than 5000 pcs. Time is

negotiable.

Q:3. Do you have any MOQ limit?

A: No. 1pc is our MOQ.

Q: 4. How do you ship the goods and how long does it take arrive?

A: Sample order, we usually suggest the shipping by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to

arrive. To bulk order air or sea shipping is suggested.

Q: 5. What is the warranty for the products?

A: Yes, we offer 1 year warranty for the products.
