SUS304 30w Full Height Turnstile Gate RS485 Dry Contact High Safety

  • 1
  • 2
  • 3

Brand Name : Turboo Euro

Model Number : G535

Certification : CE, ISO9001

Place of Origin : Guangdong China(Mainland)

MOQ : 1 pcs

Price : Negotiate

Payment Terms : L/C, T/T

Supply Ability : 1000+PCS PER MONTH

Delivery Time : 7-10 working days

Packaging Details : Wooden Case Package

Product Size : 1630*1500*2310mm

Pass Rate : 35p/m

Pass Width : 600mm

Thickness : 1.2/1.5mm

Material : SUS304

Power Supply : 100-240V(AC)

Operational Voltage : 24V(DC)

Communication Interface : RS485 Dry Contact

Max Power Consumption : 30w

Contact Now

Fingerprint Turnstile Full Stainless Steel Single Pass Site Full Height Turnstile Turboo
Product Description
G535 full-height turnstile has the highest security among all turnstile machines.
It can be unattended with high safety and reliability, and has strong adaptability to the environment.
Therefore, it is suitable for the occasions with very high requirements for unattended and security, as well as some outdoor occasions with bad environment.

Product parameters

Model Number: G535
Product Size: 1600*1500*2310mm
Pass Width: <=600mm
Frequency: 50Hz
Thickness: 1.2mm/1.5mm
Material: SUS304
Communication Interface: RS458, Dry Contact
Infrared Sensor: NA
Throughput rate: 35p/m
Power Supply: 100-240V(AC)
Operational Voltage: 24V(DC)
Max Power Consumption: 30w

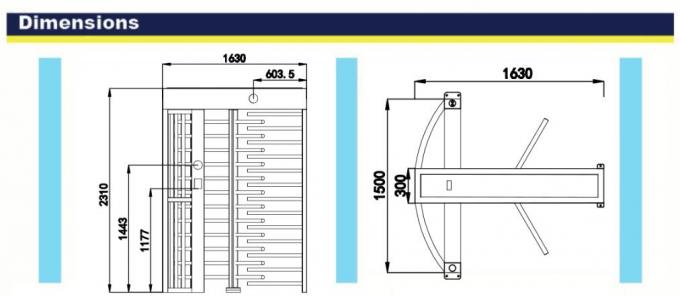

Dimension Diagram

SUS304 30w Full Height Turnstile Gate RS485 Dry Contact High Safety

Features And Benefits:

• Reasonable and reliable design, low noise, smooth operation and long service life
• With function of opening doors automatically under power-off state to meet the need of fire engine access
• With functions of anti-tailing, anti-reverse pass and other functions
• Cards can be set "with memory" or"without memory" function
• With automatic reset function: After obtaining authorization of opening the gate, the gate will be closed automatically if pedestrian didn't pass the gate at the time set period
• With infrared sensors anti-pinch function and physical anti-pinch double protection
• Compatible with IC, ID card reader and face recognition and etc.
• Two working modes are optional: Normally open or normally close
• Various available working modes: Single or bidirectional way card reader and etc.

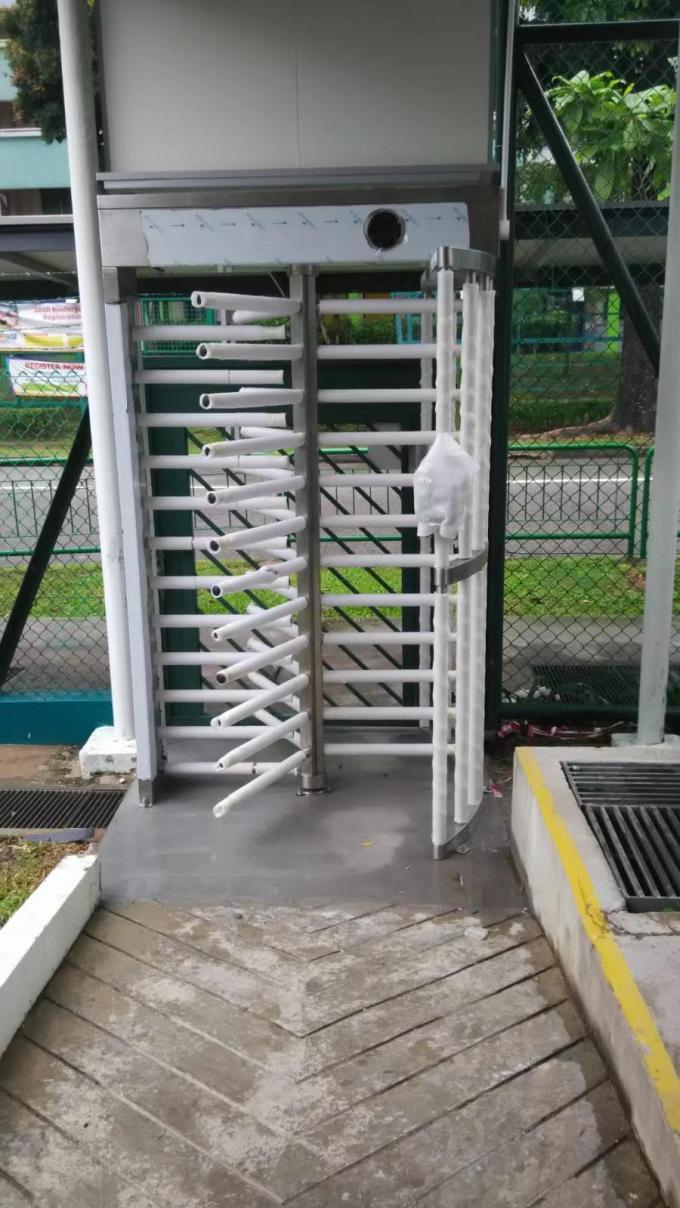

Project Case
SUS304 30w Full Height Turnstile Gate RS485 Dry Contact High Safety
Service And Shipping
SUS304 30w Full Height Turnstile Gate RS485 Dry Contact High Safety

FAQ:

1. How about your company’s actual strength?

We are the top 3 in turnstile field in China. We have more than 100 employees, a R&D group with 20 people, 1 office and 3 factories. Factories and office buildings are 5000 square meters in total.

2. Shall we do promissory note settlement?
We can accept confirmation, irreversible promissory note of 15 days at most.
3. How about the lead time?
Normally we have stock for the hot sale models of standard products.
Generally standard products need 10 working days.
The customized products need 20 working days.

4. How long is your warranty period?
13 months, add 10% of contract amounts since the second year,15% of the contract amounts since the third year.
5. How about your package?

Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.
